Specifications

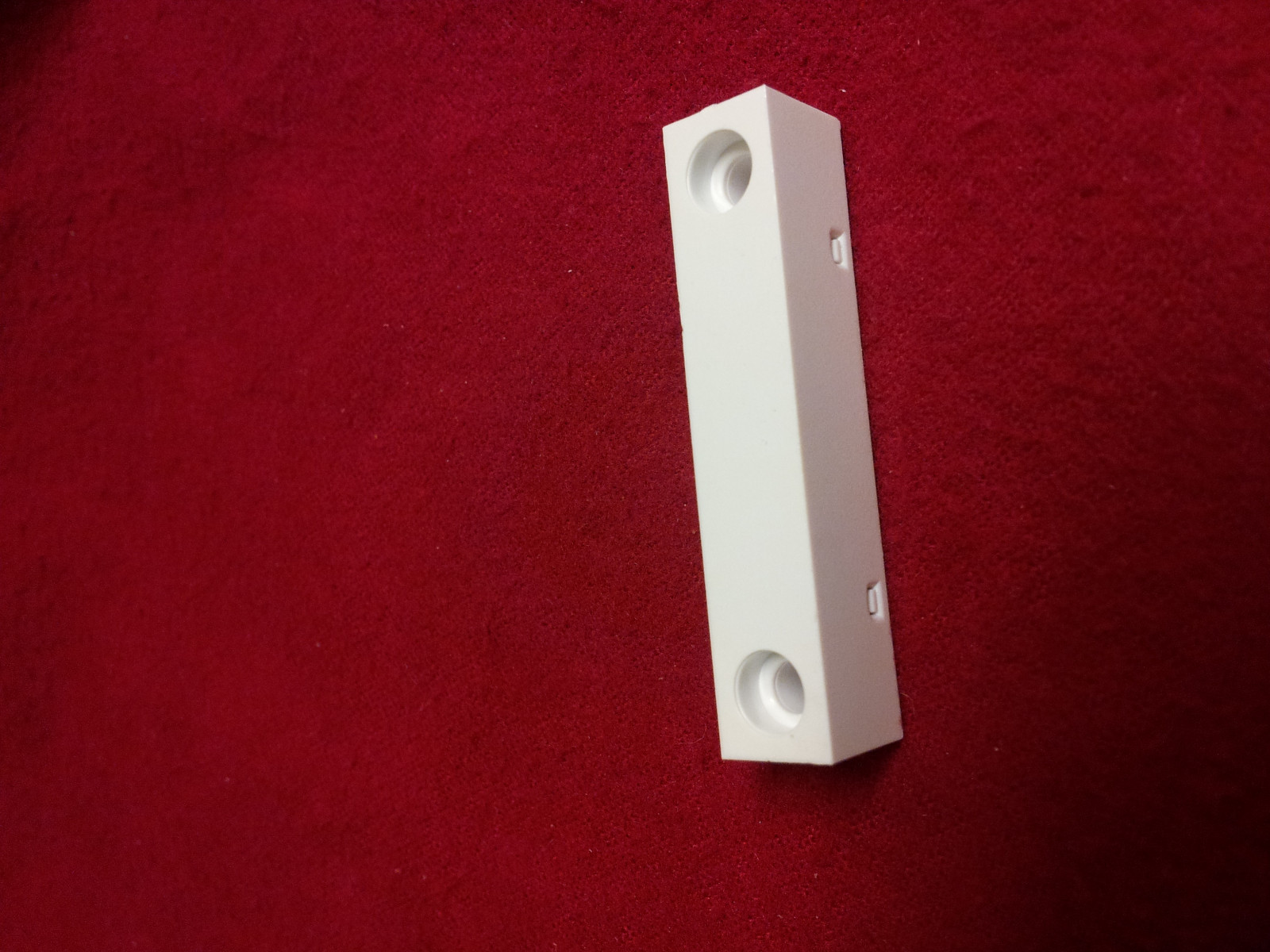

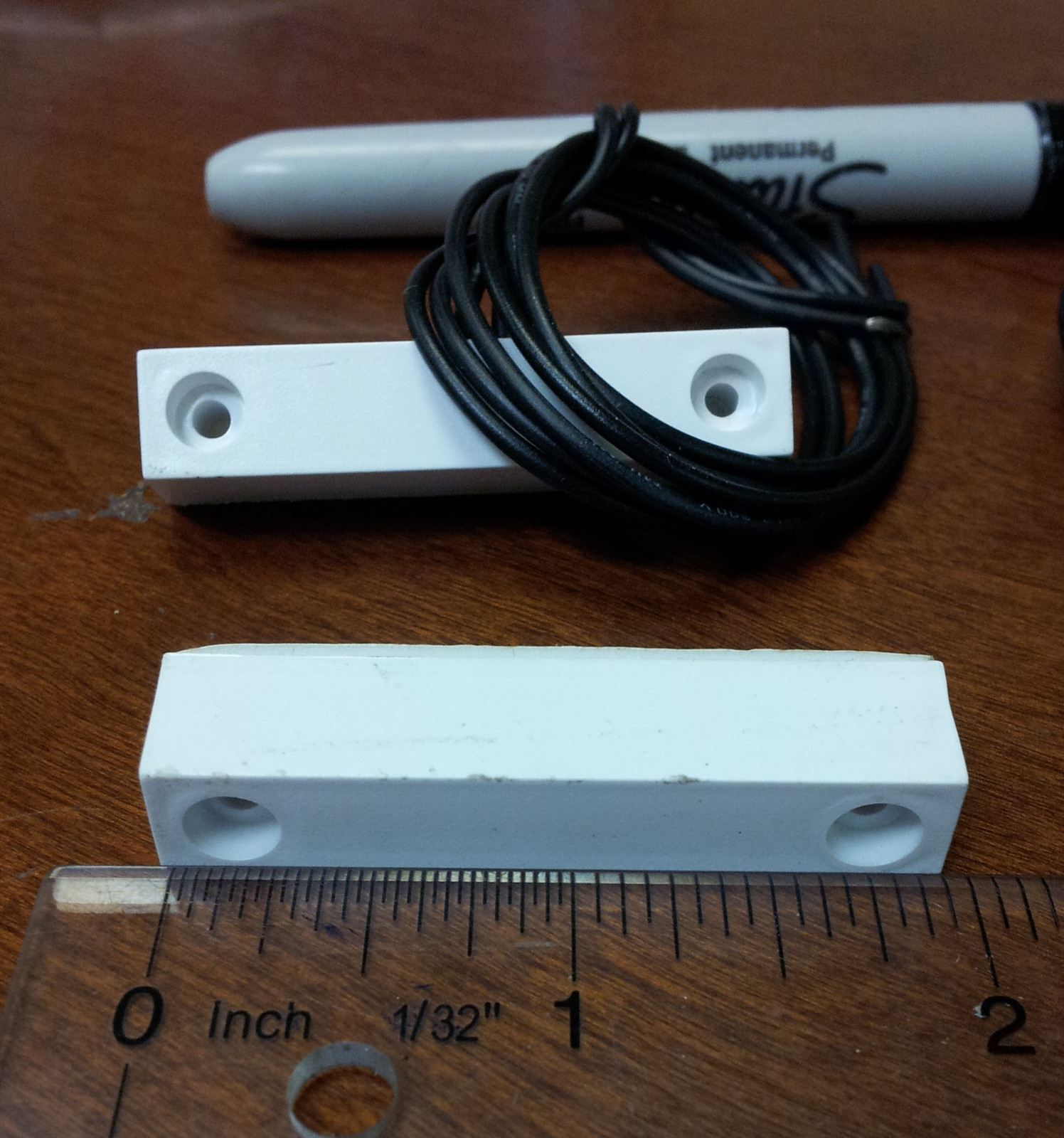

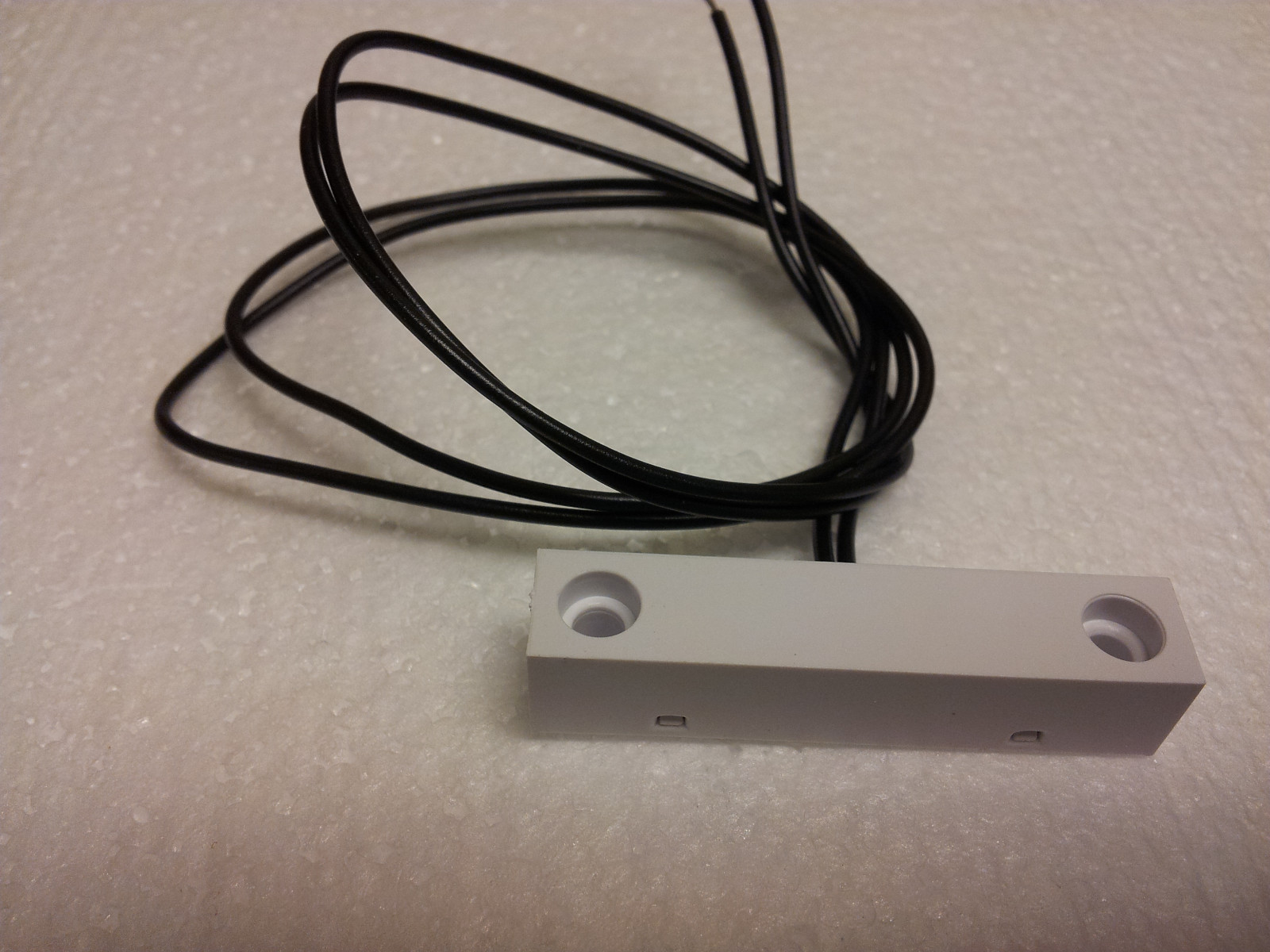

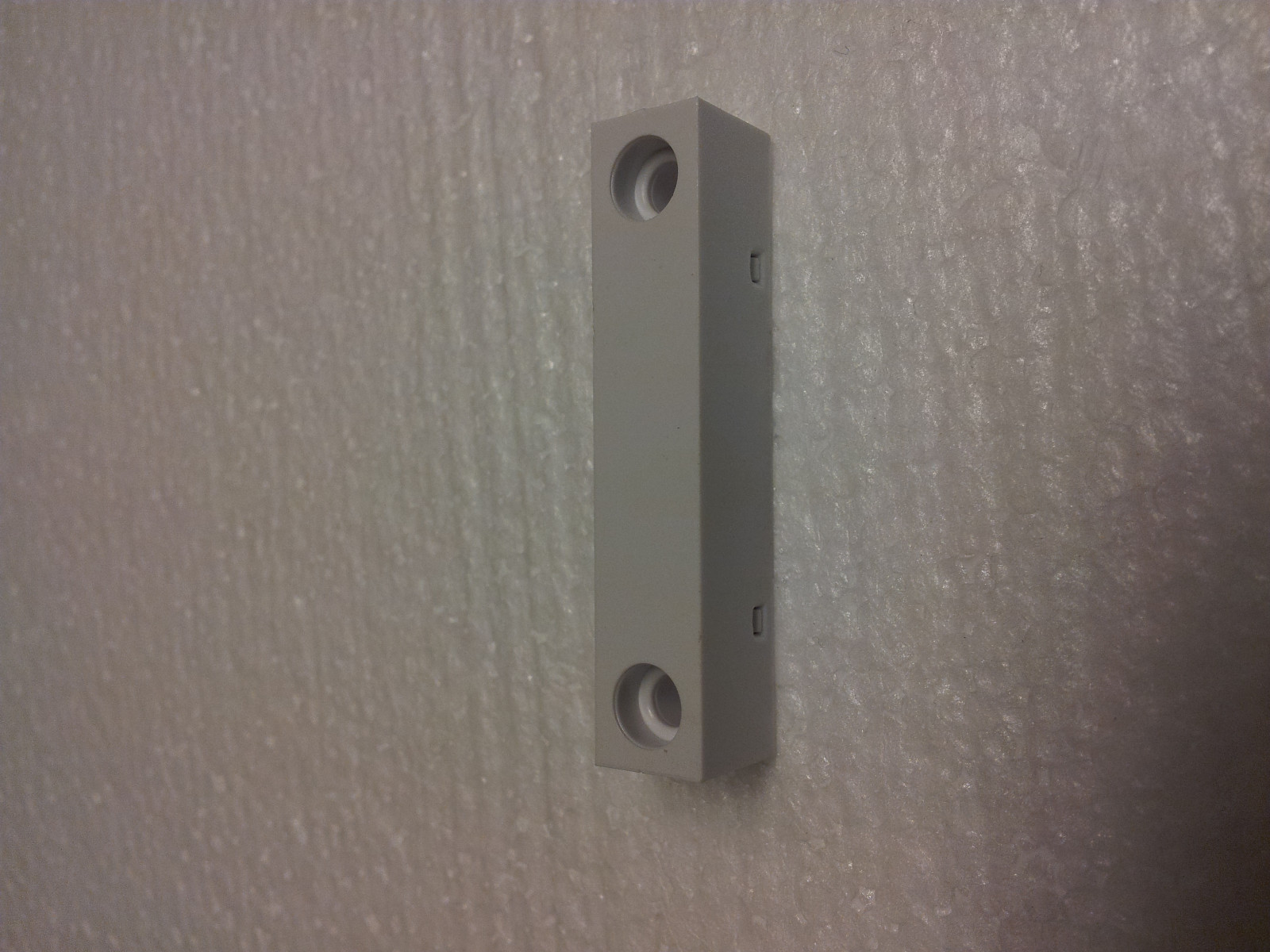

SINGLE switch with leads with Magnet. Easy Screws included (3/4 inch) Mounting Wide Operating Gap: Min 5/8" (16mm) min. 18" Long Wire Leads When the magnet is next to the switch the loop is OPEN. When the magnet is pulled away from the switch the loop CLOSES. Reed Switch Specifications Contact Rating: 10W/VA Switching Voltage (Max.) : 200 VDC Switching Current (Max.) : 0.5 Amp. Contact Resistance (Min.) : 150 milli ohms Life Expectancy: 10x 10 6 Operations Insulation Resistance: 10 9 ohms Shock Resistance: 30G for 11mSec. Vibration Resistance: 20G (10 to 1000Hz) Magnets: Rare Earth Plastic Material: ABS Plastic Message with questions BEFORE you purchase. Alarm Dealers are Welcome
