5 Plunger Switch Alarm System Contact Terminal Sensor Honeywell Window Door Bosc
Specifications
| Restocking Fee | 15% |
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| MPN | QS 920 MA |
| Model | QS 920 MA Qty 5 |
| Connectivity | Wired |
| Brand | Quick-Switch.c |
| Color | White |
| Type | Door/Window Sensor |

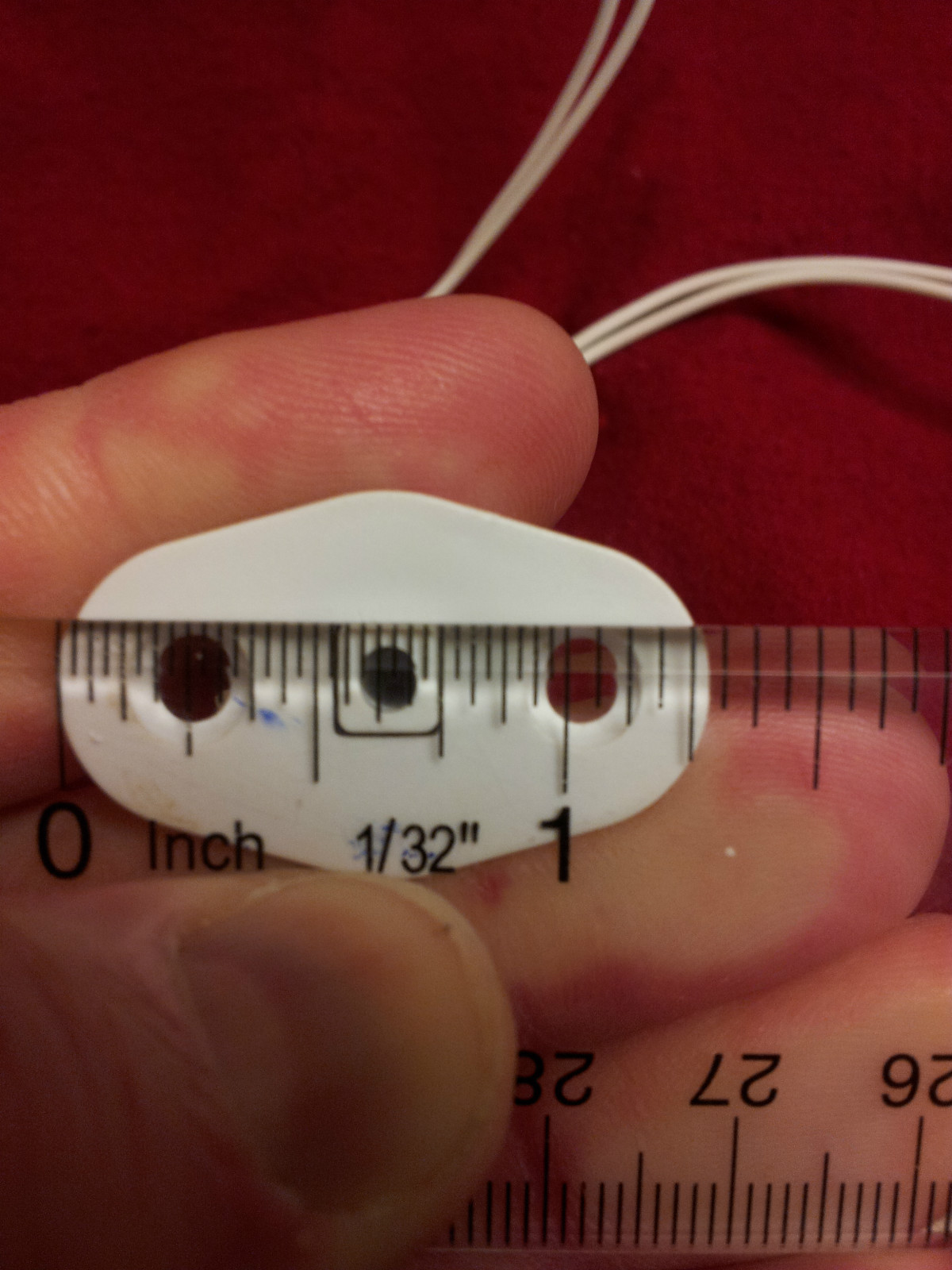

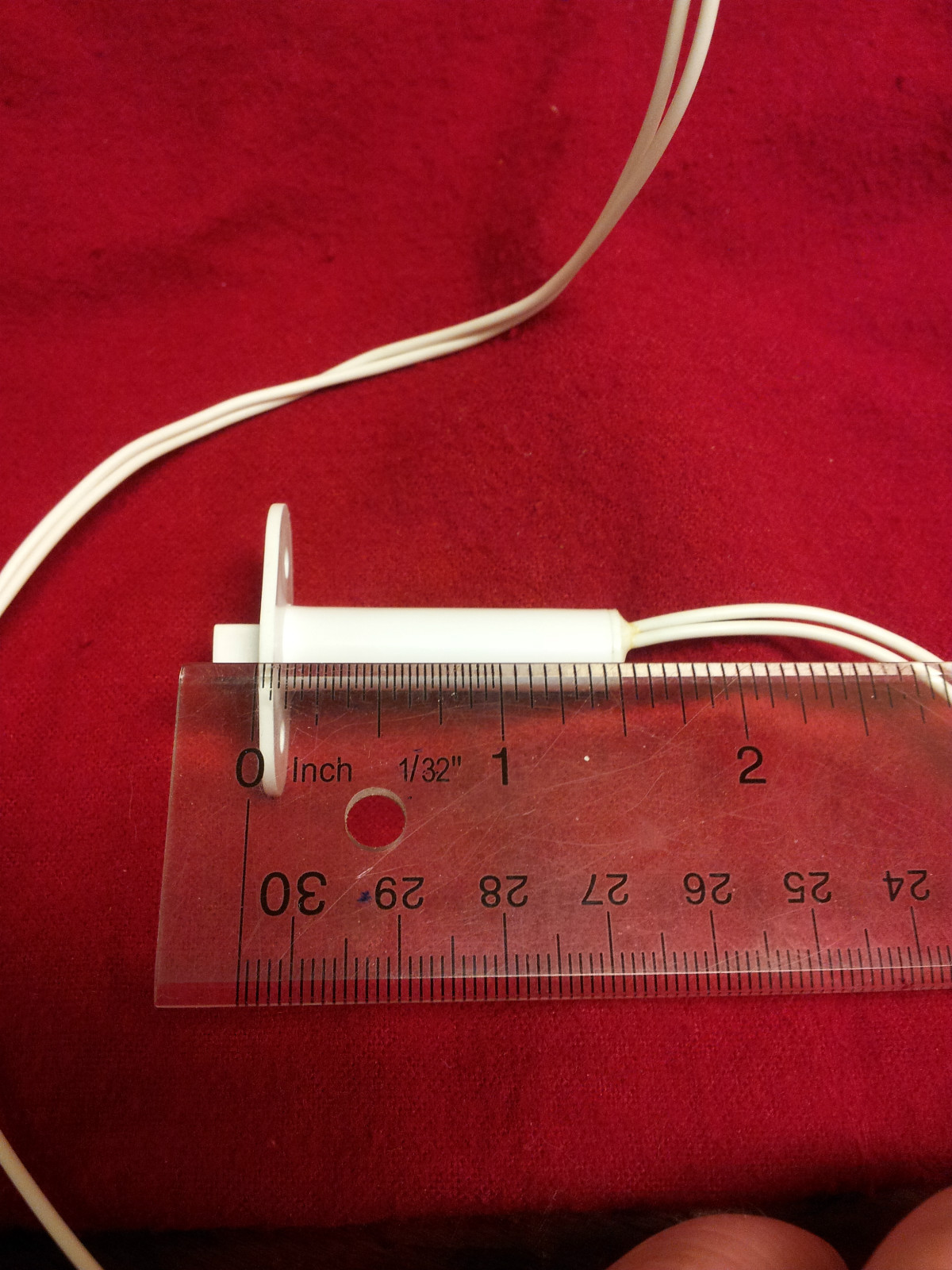

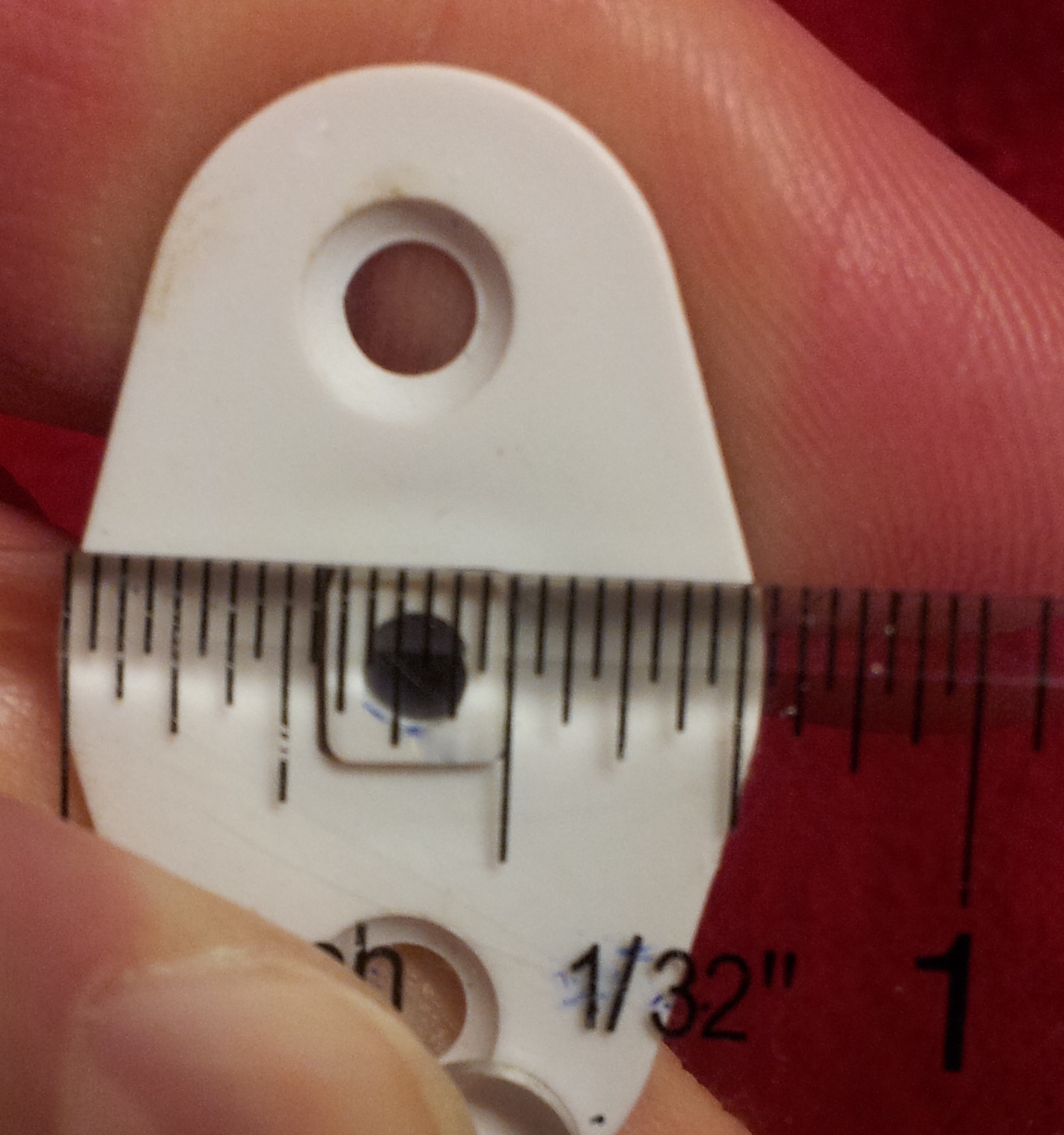

Recessed plunger switch This is for 5 Recessed plunger switches 3/8" Diameter Mounting Hole needed Flange for Reliable Retention with 2 screw holes 3 mm pre-travel stroke and 7mm overall operating stroke Screw Provided 18" Long Wire Leads. When the plunger ball is depressed the loop is closed. When the plunger is released the loop opens. Reed Switch Specifications Contact Rating: 10W/VA Switching Voltage (Max.) : 200 VDC Switching Current (Max.) : 0.5 Amp. Contact Resistance (Min.) : 150 milli ohms Life Expectancy: 10x 10 6 Operations Insulation Resistance: 10 9 ohms Shock Resistance: 30G for 11mSec. Vibration Resistance: 20G (10 to 1000Hz) Magnets: Rare Earth Plastic Material: ABS Plastic If you have any questions please Message them BEFORE you buy Alarm Dealers are Welcome
