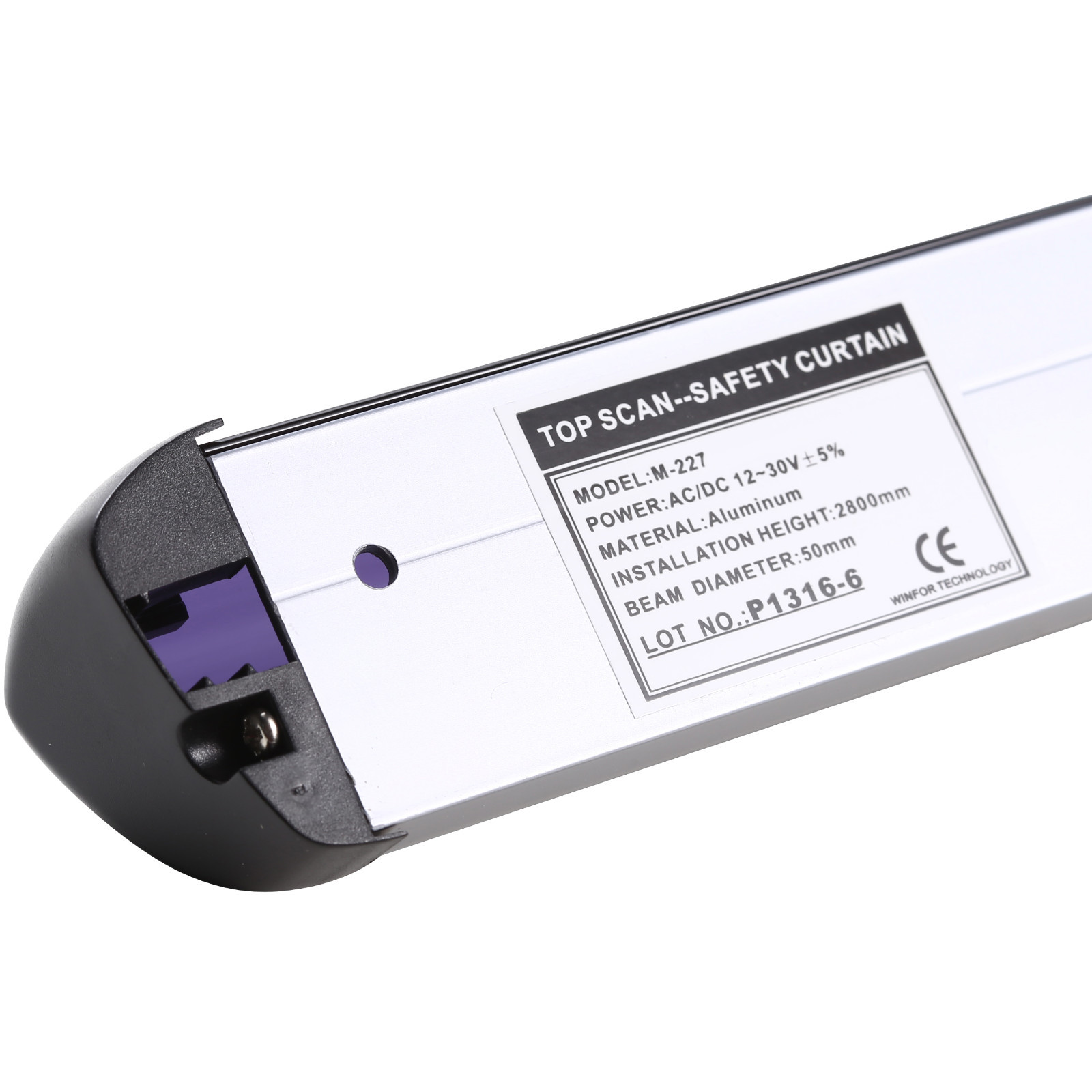

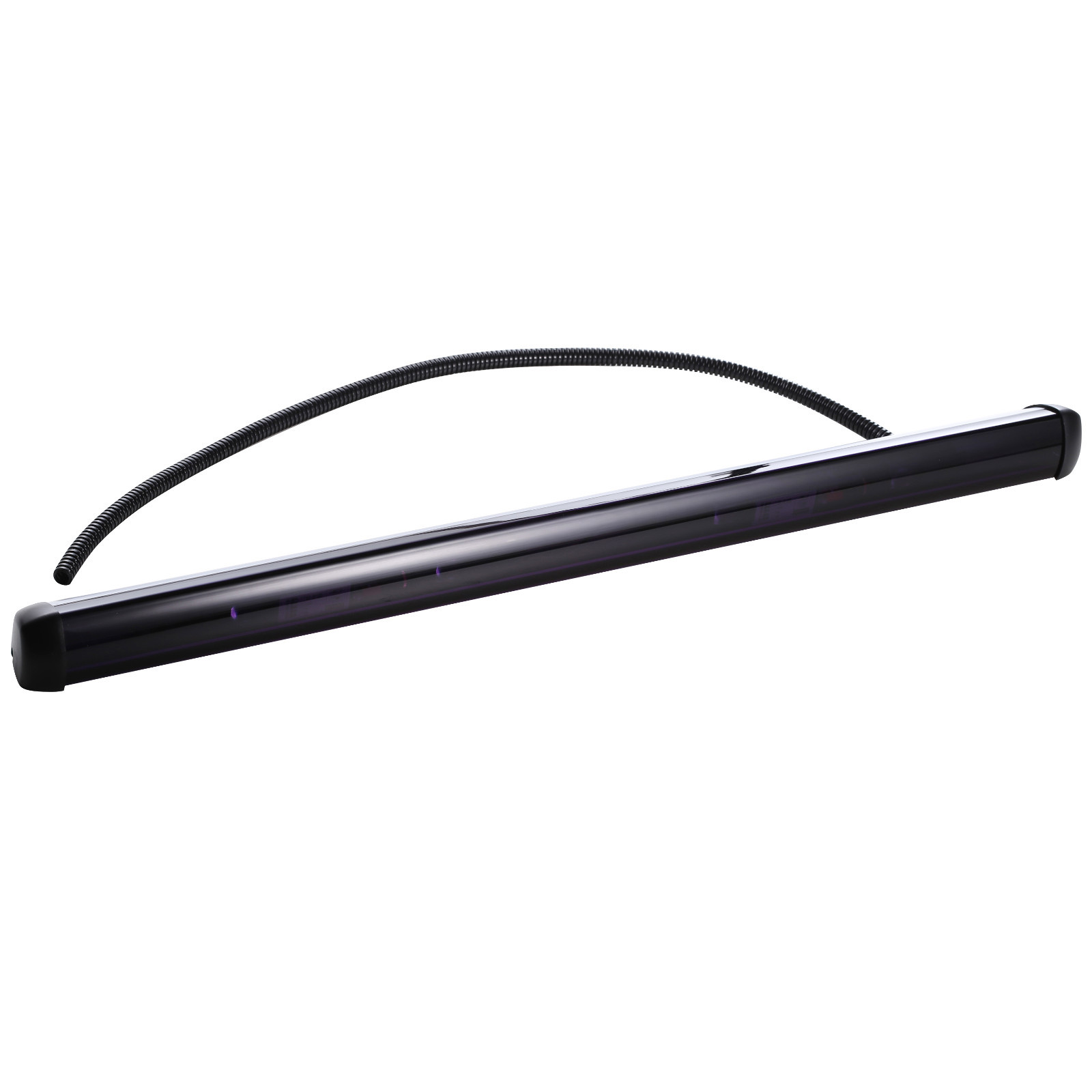

Infrared Rotation Door Motion Top Scan Presence Detect Sensor For Auto-Door
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| MPN | Does not apply |
| Country/Region Of Manufacture | China |
| Model | CNB-227B |
| Brand | Unbranded |
| Type | Motion top scan |
Document Features It can detect moving or standing people or objects,keep safety when people or equipments enter from rotation door or automatic swing door. Ingenious structure,simple but modern appearance.And very easy to install. The detection height and sensing area are adjusted by adjusting wheel and locking the screws. Quick response and accurately. The system has stabilized voltage and set filtration system to filter background and noise. Don't influence by environment(sunshin,snow or rain). The detection angle of scanning can be adjusted by mounting bracket accurately. Specifications Scan aera setting Mechanical adjustment of wheels 500-2800mm (Triangle principle) Ambient temperature -20~60C (Deviate from set scan aera 60C) Distinguish black/white Max. 20%. Whtie: scan area is larger. Black: Scan area is smaller (The distinguish between black and white according to scan area set) Detection area diameter approx. 75mm light spot (Apply in 2000mm scan area) Type of ray Infrared ray (880nm pulse modulaton infrared light) Operation voltage AC/DC12-36V Current consumption <100mA Signal output Relay,switch point;Highest alternating voltage 48VDC/AC;Highest alternation current 0.5A DC/AC;Highest alternating capacitance 550 volt-ampere/24watts Detection response time <100ms Operate mode Motion or standstill mode (Self-adaption) Function indicator LED (Blue-standby,Red-detect) IP IP52 Housing material AL/ABS Sensor dimension 620Lx31Wx20Hmm Package 1 x Motion top scan
